T-JUNCTIONS

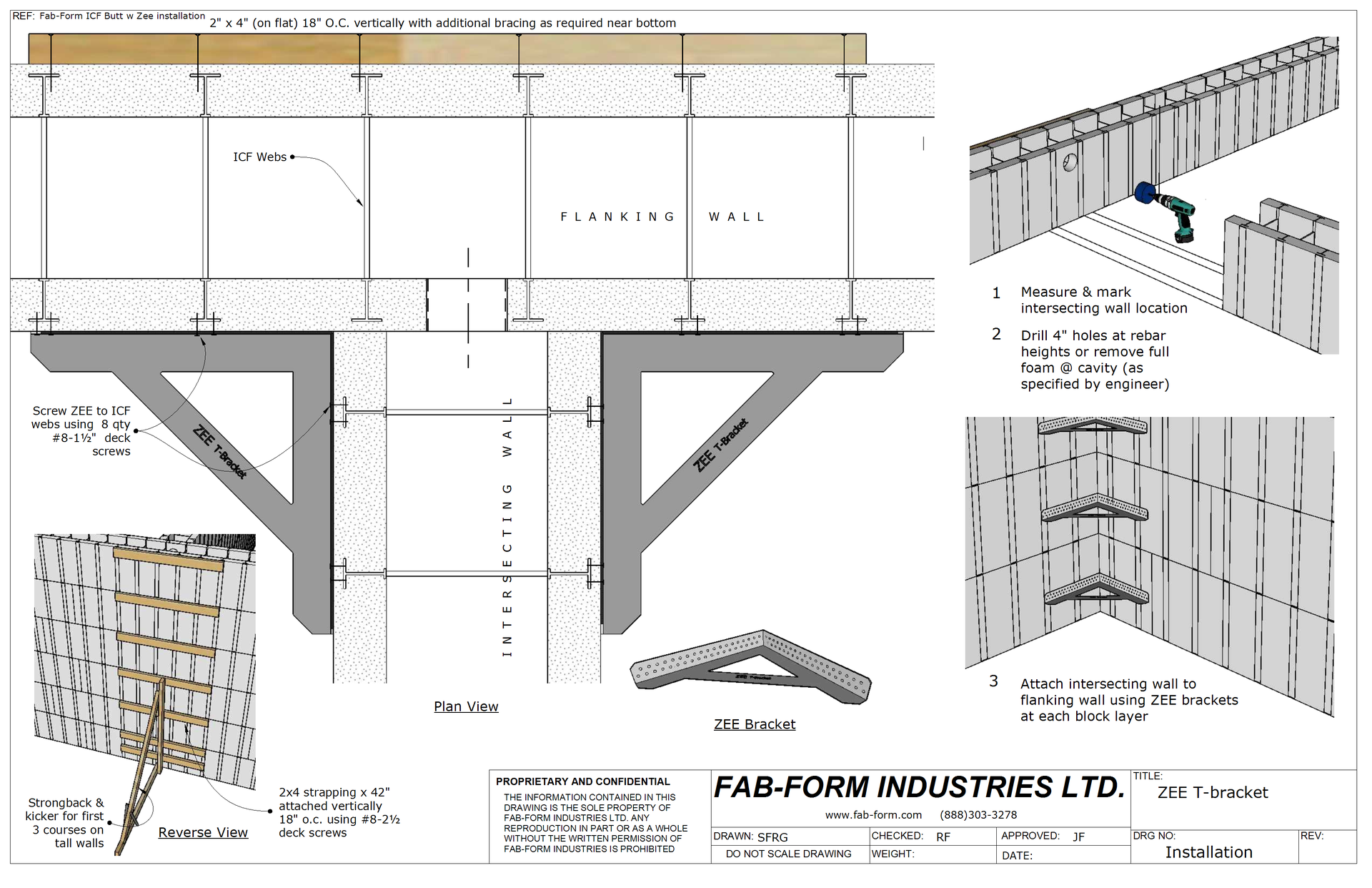

We recommend creating a simple "butt" junction as shown below and use our ZEE" brackets to hold the butt together under concrete pressure. Click on the image to download the PDF file. We do not recommend the Nudura T-block as it performs poorly under concrete pressure.

 Zee Bracket

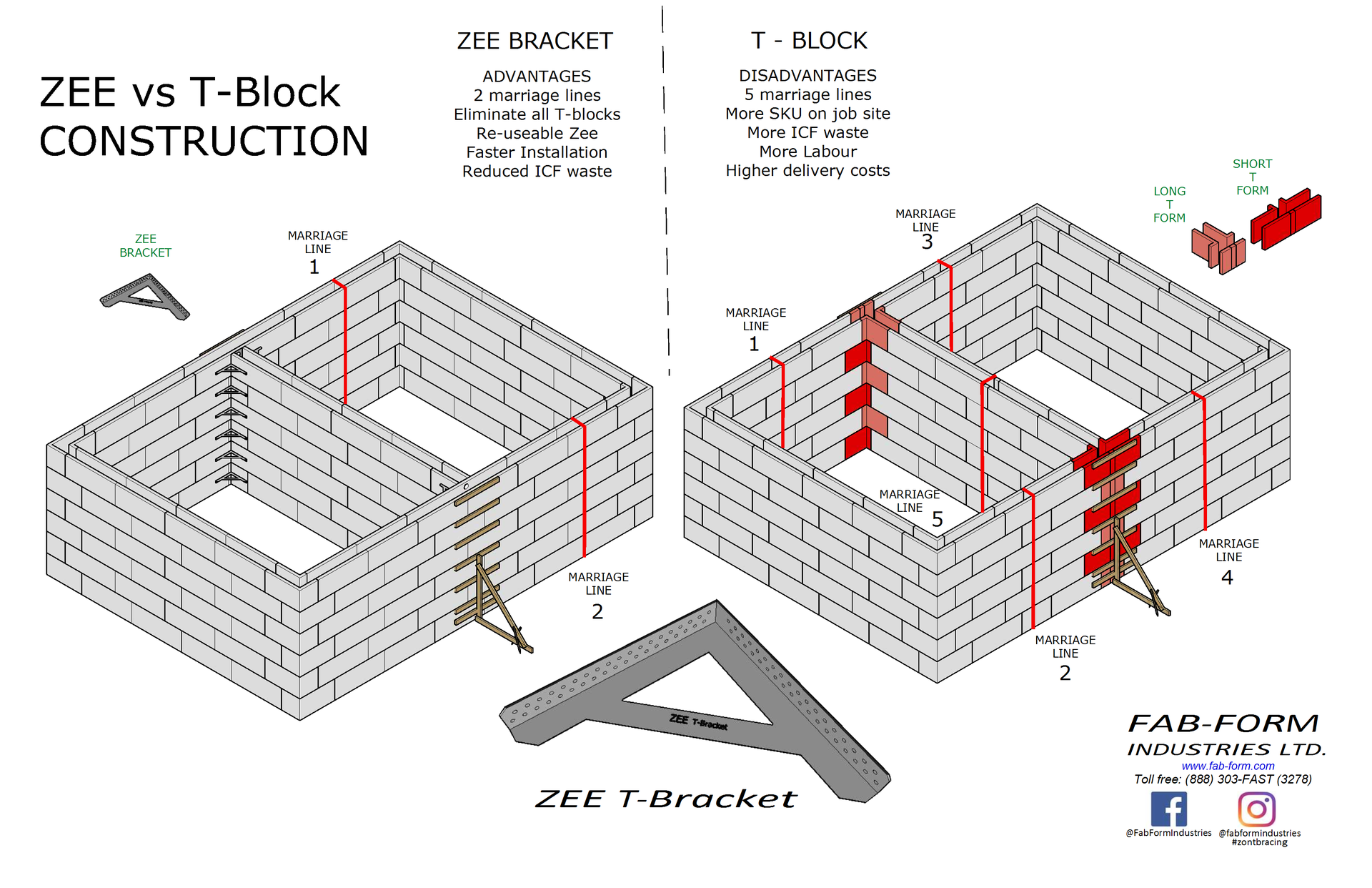

ADVANTAGES OF THE ZEE BRACKET

 Bracing Custom Corners

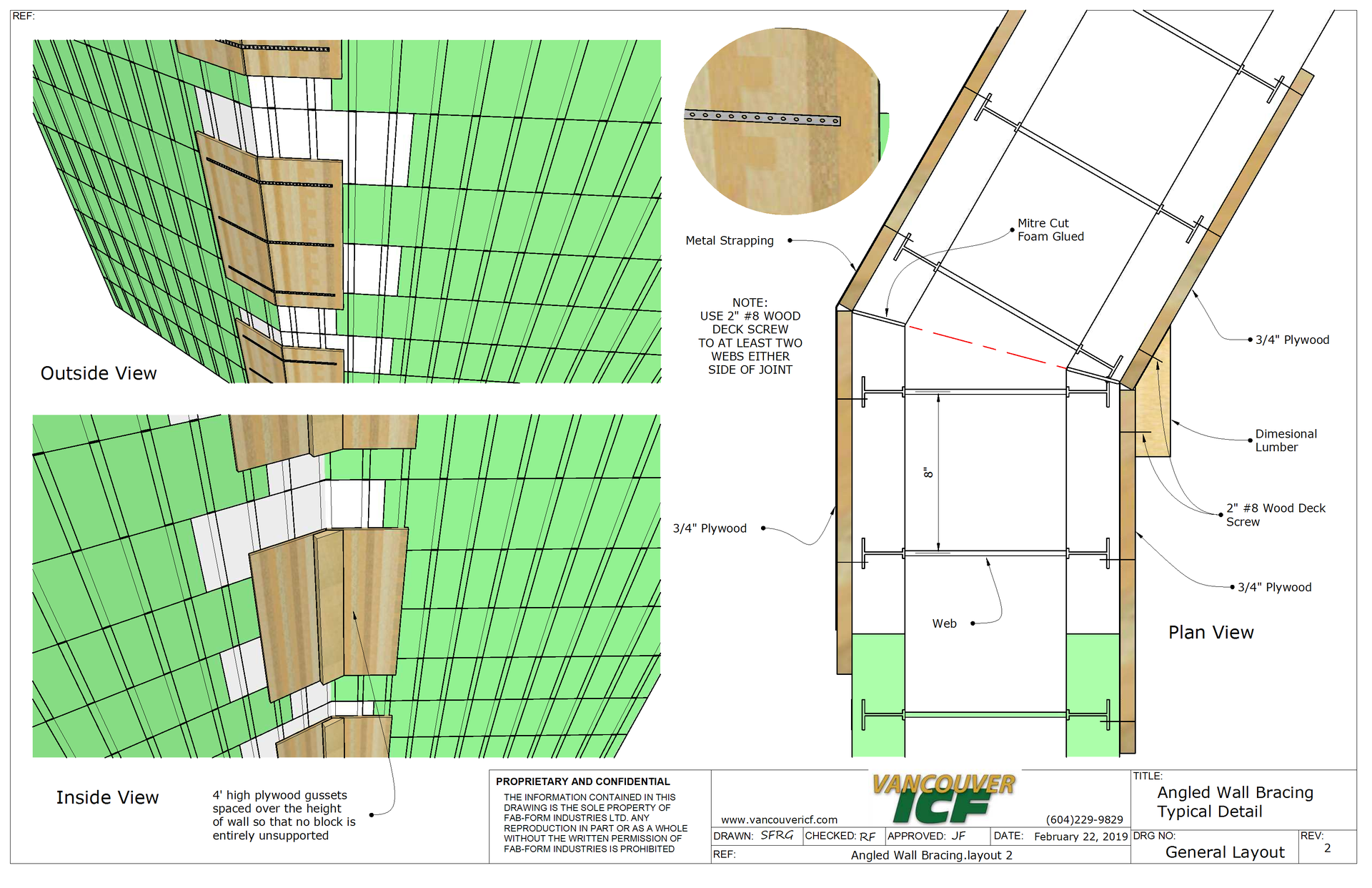

 Nudura supplies 90 and 45 degree corners. Custom angles are best braced with dimensional lumber and plywood as shown below. The image can be clicked to download the PDF file.

12" Offset Corners

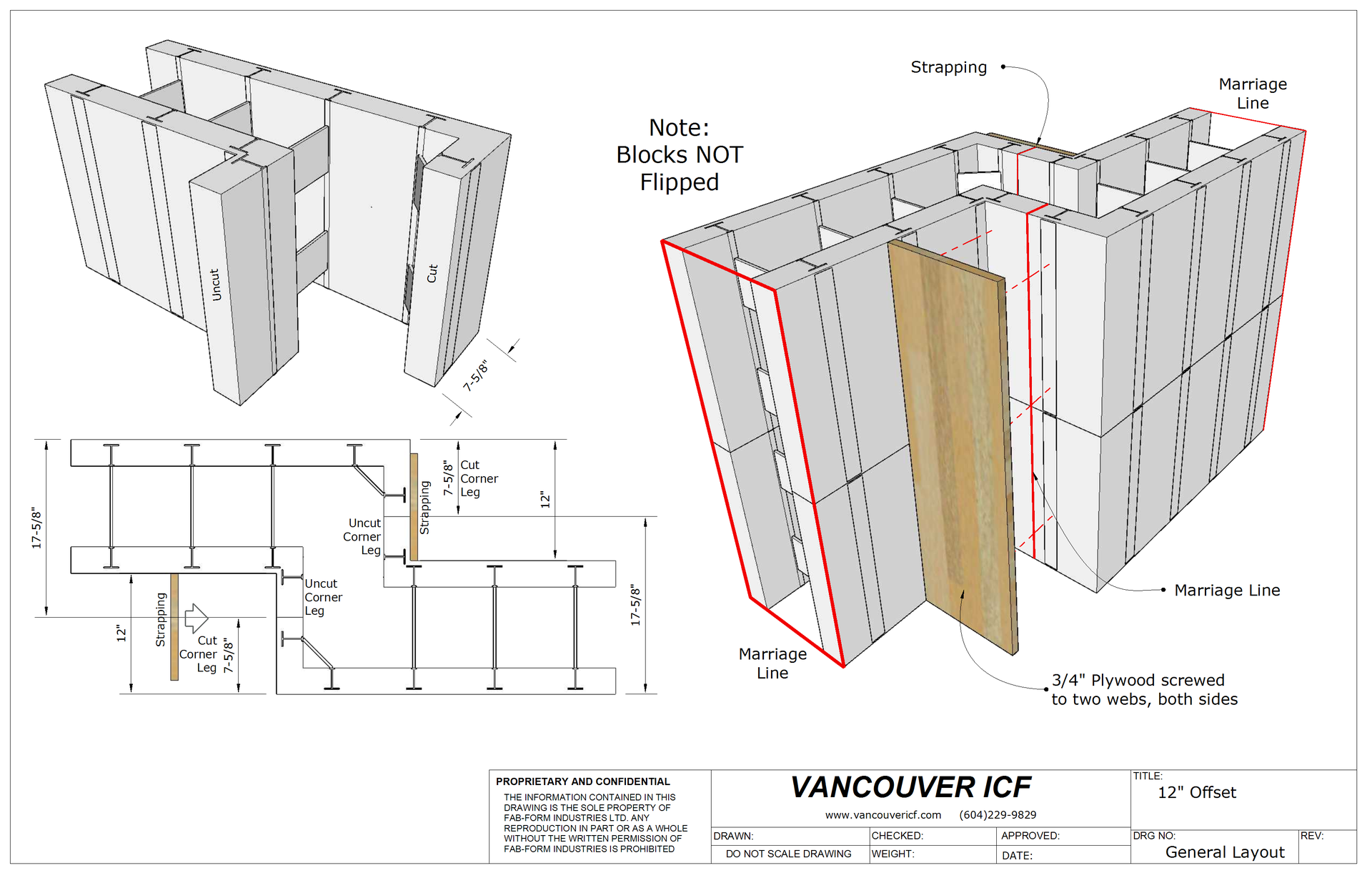

12" offset corners are easily achieved with Nudura as shown in the drawing below. This method allows for the creation of marriage lines on each side of the offset. The image can be clicked to download the PDF file.

Changing Wall Widths at Corners

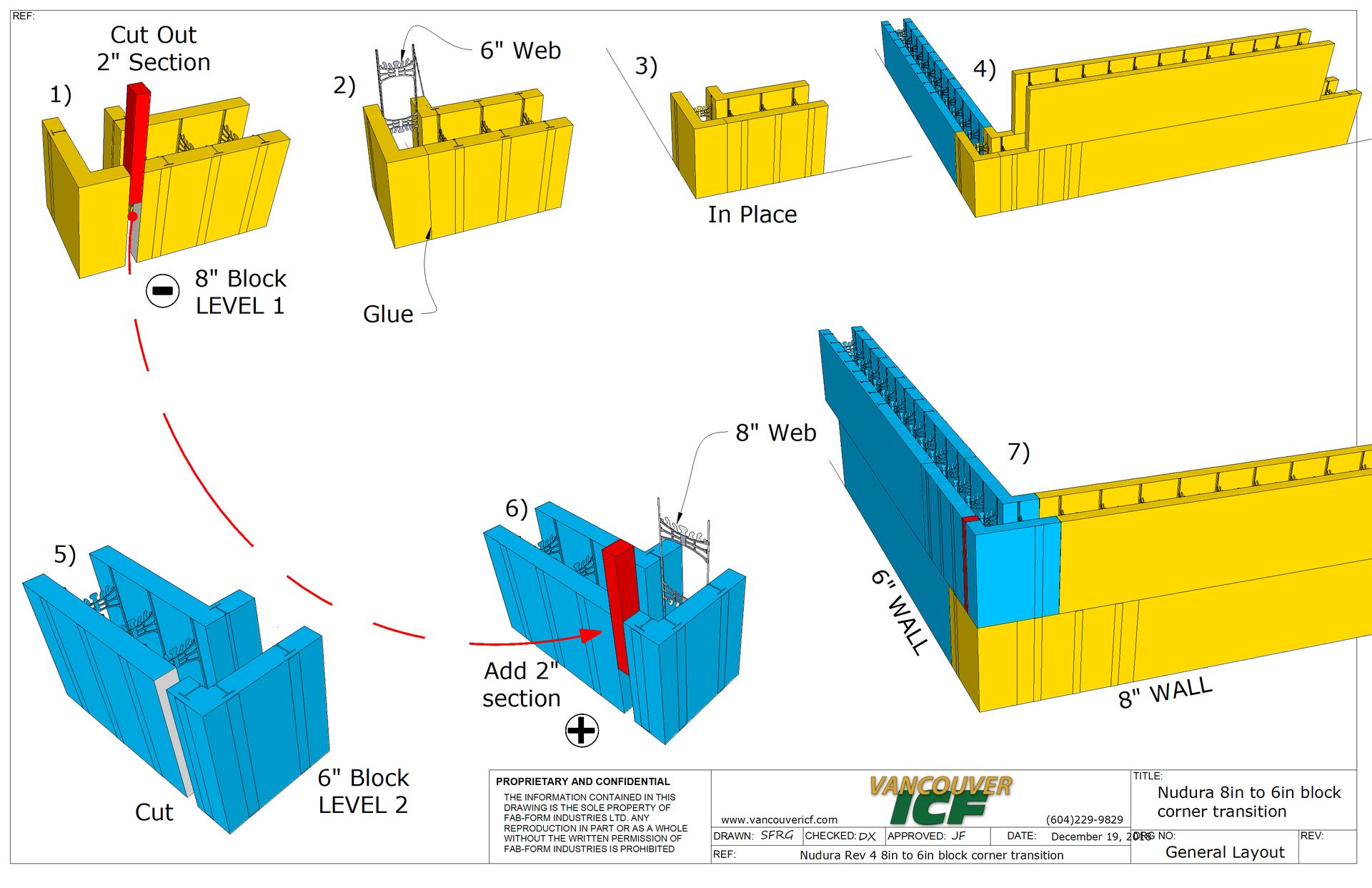

Nudura allows the wall width to be transitioned at the corner. A 2" fillet is removed from the one corner block and added to the next corner. The image can be clicked to download the PDF file.

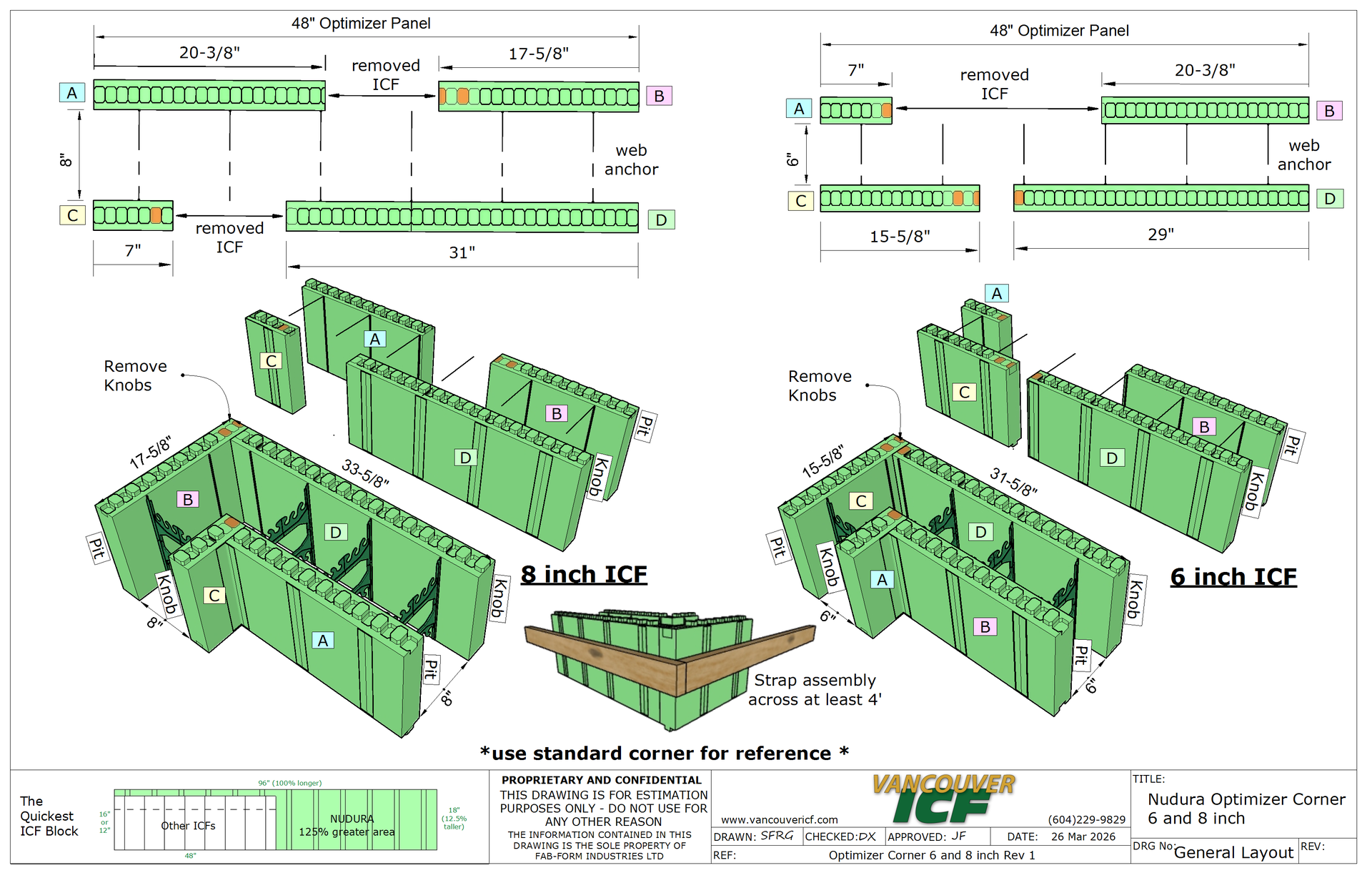

Installing the Optimizer Block in Corners

Click on the image below for a PDF file.

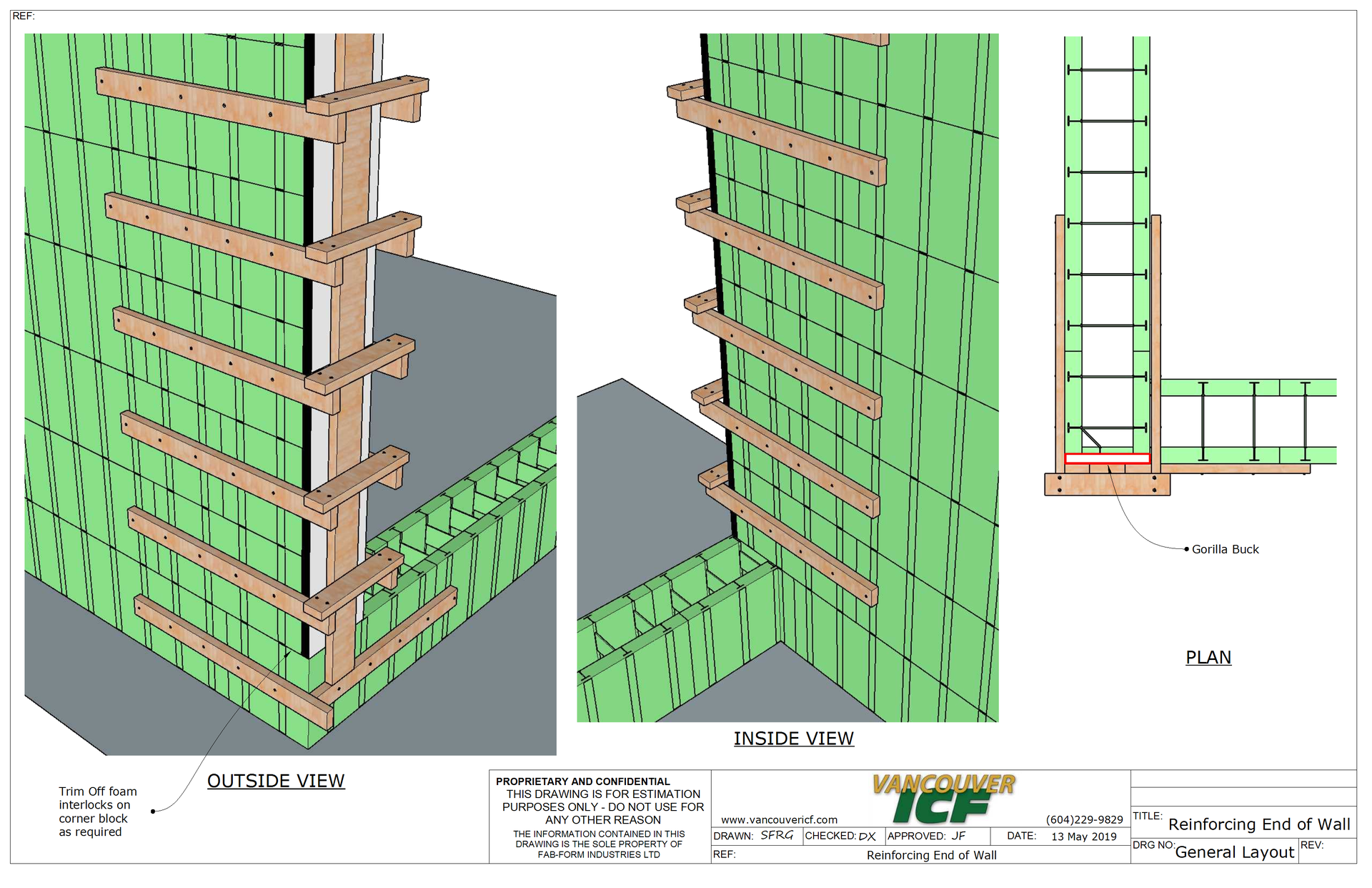

Reinforcing end of wall bucks

Click on the image below for a PDF file.
